Mechanical Presses , Presses - Product Comparison Sheet metal

Ask for technical information Issue invitation to tender

Search results 1 to 50 of 208

Photo	Brand BLISS BRET BRUDERER DIRINLER MAKINA EMG FRESAN LETAC NICALEX OMERA OMERA Roff PRESSIX REMIREMONT ROSS SANGIACOMO /	Product Range	Product	Request further information	Type of Frame	Force (kN) Min Max	Eccentric Press	Rack Press	Quantity of Connecting Rods Min Max	Min Stroke (mm) Min Max	Max Stroke (mm) Min Max	Min Strike Rate (strikes/min) Min Max	Max Strike Rate (strikes/min) Min Max	Max Die Height (mm) Min Max	Slide Adjustment (mm) Min Max	Throat Depth (mm) Min Max	Distance Slide - Table (mm) Min Max	Distance Between Uprights (mm) Min Max	Slide Width (mm) Min Max	Slide Depth (mm) Min Max	Lower Table Width (mm) Min Max	Lower Table Depth (mm) Min Max	Max Engine Power (kW) Min Max	Weight (kg) Min Max	Machine Length (mm) Min Max	Machine Width (mm) Min Max	Machine Height (mm) Min Max

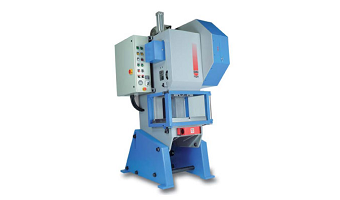

	EMG		45 T - -	More info	Col de Cygne	450	No	No	0	6	100	0	130	299	70	220	0	0	0	0	650	430	5.5	3100	930	1482	2470

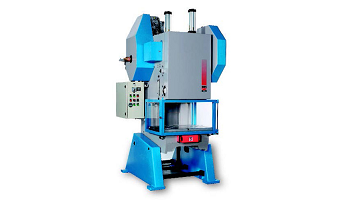

	EMG		80 T - -	More info	Col de Cygne	800	No	No	0	8	120	0	0	332	100	300	0	0	0	0	850	600	7.5	5000	1385	1705	2730

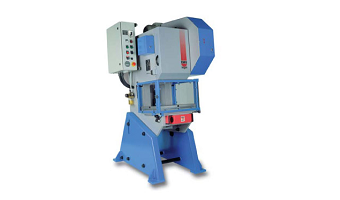

	EMG		25 T - -	More info	Col de Cygne	250	No	No	0	5	75	0	140	262	60	210	0	0	0	0	550	400	2.2	1400	1080	1177	1990

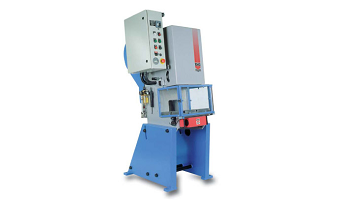

	EMG		15 T - -	More info	Col de Cygne	150	No	No	0	5	75	0	140	261	50	180	0	0	0	0	450	320	1.1	900	890	910	1915

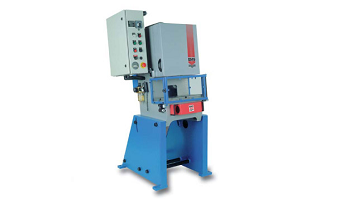

	EMG		6 T - -	More info	Col de Cygne	60	No	No	0	4	40	0	240	178	30	120	0	0	0	0	450	220	0.5	450	860	855	1745
-	BLISS BRET	PCK	C50 - -	More info	Col de Cygne	500	No	No	0	15	155	35	75	300	65	250	0	0	0	0	0	0	7.5	4500	1200	1890	2692
-	LETAC	ANEX	ANEX 80CE - -	More info	-	800	No	No	0	0	32	0	600	0	80	0	0	0	0	0	0	0	0	19000	0	0	0
-	PRESSIX	CNR4	80 CNR4 - -	More info	Col de Cygne	800	No	No	0	8	120	38	115	0	100	300	370	0	400	500	620	880	4	5520	2980	1570	1360
-	REMIREMONT	PA	PA 63 - -	More info	Arcades	630	No	No	0	8	100	60	180	0	80	0	0	0	0	0	0	0	7.5	7200	1400	1430	2800
-	SANGIACOMO	DM-DB	T315 DM-DB 2R - -	More info	Arcades	3150	Yes	No	2	0	400	14	34	0	0	0	650	0	2200	1300	2150	1300	0	0	0	0	0
-	LETAC	T RCE	T450 RCE - -	More info	Col de Cygne	4500	Yes	No	0	20	250	22	50	0	0	0	850	0	900	1400	1000	1800	0	0	0	0	0
-	BLISS BRET	2PACK	2 PACK 32 - -	More info	Arcades	3200	No	No	2	20	200	40	80	600	150	0	0	2300	0	0	0	0	37	45000	3300	2600	4600
-	SANGIACOMO	DM-DB	T160 DM-DB - -	More info	Arcades	1600	Yes	No	2	18	180	35	90	0	0	0	500	0	1350	800	1500	900	0	0	0	0	0
-	LETAC	DM DB	T250DM-DB - -	More info	Arcades	2500	Yes	No	2	21	230	35	75	0	0	0	550	0	1900	1150	1900	1100	0	0	0	0	0
-	FRESAN	FP	FP 100P - -	More info	Col de Cygne	1000	Yes	No	0	0	132	0	55	0	0	300	445	0	0	0	600	900	7.5	5950	1650	1545	2800
-	BLISS BRET	PACK	PACK 12 - -	More info	Arcades	1250	No	No	1	20	180	50	100	400	100	0	0	1150	0	0	0	0	11	14000	1900	2000	3600
-	LETAC	TMDPRESS	TMD W 3000 - -	More info	-	3000	No	Yes	0	0	200	35	70	0	100	0	0	0	0	0	0	0	0	60000	0	0	0
-	REMIREMONT	PFVA	PFVA 320 - -	More info	Col de Cygne	3200	No	No	0	20	250	20	60	0	160	0	0	0	0	0	0	0	37	34000	1420	2540	4200
-	NICALEX	NC	NC-160-H - -	More info	Col de Cygne	1600	No	No	0	20	160	30	70	380	120	400	0	0	800	550	1300	780	15	13500	1805	2200	3675
-	REMIREMONT	PVA	PVA 025 - -	More info	Col de Cygne	250	No	No	0	8	80	60	180	0	60	0	0	0	0	0	0	0	2.2	1980	650	1185	2025
-	REMIREMONT	PAP	PAP 100 - -	More info	Arcades	1000	No	No	2	20	120	50	150	0	100	0	0	0	0	0	0	0	18.5	25000	2800	2000	4400
-	PRESSIX	DM1CC	250 DM1CC - -	More info	Arcades	2500	Yes	No	0	19	250	23	70	0	120	0	600	0	0	0	1100	1600	29	24500	0	0	0
-	LETAC	EUROPRESS	EP-3 400/2500 - -	More info	Arcades	4000	Yes	No	0	0	30	60	380	0	100	0	0	0	0	0	0	0	0	0	0	0	0
-	BLISS BRET	PACK	PACK 32 - -	More info	Arcades	3200	No	No	1	20	240	35	70	450	150	0	0	1450	0	0	0	0	37	36000	2550	2900	4500
-	LETAC	PR	PR20 C - -	More info	Col de Cygne	200	Yes	No	0	6	60	84	210	0	0	0	300	0	190	278	300	450	0	0	0	0	0
-	BLISS BRET	PACK	PACK 20 - -	More info	Arcades	2000	No	No	1	20	200	40	80	400	150	0	0	1250	0	0	0	0	22	20000	2700	2400	3800
-	REMIREMONT	PA	PA 320 - -	More info	Arcades	3200	No	No	0	20	240	20	60	0	150	0	0	0	0	0	0	0	30	42000	2450	2250	4600
-	PRESSIX	CNV4	40 CNV4 - -	More info	Col de Cygne	400	No	No	0	5	100	60	180	0	70	220	240	0	300	350	480	650	2.2	2900	2410	1480	1150
-	SANGIACOMO	DM-DB	T250 DM-DB - -	More info	Arcades	2500	Yes	No	2	21	230	35	75	0	0	0	550	0	1900	1150	1900	1100	0	0	0	0	0
-	LETAC	T RCE	T130 RCE - -	More info	Col de Cygne	1300	Yes	No	0	16	200	28	70	0	0	0	560	0	540	740	700	1200	0	0	0	0	0
-	BLISS BRET	2PACK	2 PACK 20 - -	More info	Arcades	2000	No	No	2	20	180	40	80	500	100	0	0	1950	0	0	0	0	21	25000	3000	2600	4200
-	SANGIACOMO	DM-SB	T125 DM-SB - -	More info	Arcades	1250	Yes	No	1	16	200	28	70	0	0	0	450	0	1300	800	1300	800	0	0	0	0	0
-	LETAC	DM SB	T200DM-SB - -	More info	Arcades	2000	Yes	No	1	19	230	22	56	0	0	0	520	0	1450	850	1450	850	0	0	0	0	0
-	SANGIACOMO	CE	T40 CE - -	More info	Col de Cygne	400	Yes	No	0	8	78	76	190	0	0	0	375	0	250	350	380	650	0	0	0	0	0
-	BLISS BRET	PCK	PCK 12 - -	More info	Col de Cygne	1250	No	No	0	20	180	50	100	400	100	335	0	0	0	0	0	0	11	12000	1800	1750	3650
-	LETAC	FENIX	FENIX 40CE - -	More info	-	400	No	No	0	0	32	0	1400	0	50	0	0	0	0	0	0	0	0	8000	0	0	0
-	REMIREMONT	PAB	PAB 200 - -	More info	Arcades	2000	No	No	2	20	180	40	120	0	140	0	0	0	0	0	0	0	46	46000	3500	2100	4100
-	REMIREMONT	PF	PF 200 - -	More info	Col de Cygne	2000	No	No	0	20	180	50	50	0	140	0	0	0	0	0	0	0	22	23000	1850	2260	4170
-	REMIREMONT	PFVA	PFVA 125 - -	More info	Col de Cygne	1250	No	No	0	18	180	40	90	0	110	0	0	0	0	0	0	0	15	11000	1040	1810	3145
-	REMIREMONT	PAP	PAP 400 - -	More info	Arcades	4000	No	No	2	50	250	30	90	0	150	0	0	0	0	0	0	0	55	72000	4100	2800	5800
-	PRESSIX	DM2CC	630 DM2CC - -	More info	Arcades	6300	Yes	No	0	40	400	10	60	0	250	0	800	0	0	0	1700	3600	116	132000	0	0	0
-	LETAC	DM DB	T250DM-DB2R - -	More info	Arcades	2500	Yes	No	0	0	300	14	36	0	0	0	550	0	2000	1150	1950	1150	0	0	0	0	0
-	FRESAN	FP	FP 15P - -	More info	Col de Cygne	150	Yes	No	0	0	40	0	200	0	0	200	215	0	0	0	320	490	1.5	840	1220	1150	1730
-	BLISS BRET	PAP	PAP 125 - -	More info	-	1250	No	No	0	50	50	0	80	300	0	0	0	0	0	0	1175	1070	27	0	0	0	0
-	LETAC	TMDPRESS	TMD W 6000 - -	More info	-	6000	No	Yes	0	0	200	35	70	0	100	0	0	0	0	0	0	0	0	110000	0	0	0
-	SANGIACOMO	RCE	T80 RCE - -	More info	Col de Cygne	800	Yes	No	0	14	150	34	85	0	0	0	480	0	380	560	580	900	0	0	0	0	0
-	REMIREMONT	PAB	PAB 250 - -	More info	Arcades	2500	No	No	2	20	200	40	120	0	140	0	0	0	0	0	0	0	37	52000	3700	2300	4400
-	PRESSIX	CNR6	130 CNR6 - -	More info	Col de Cygne	1300	No	No	0	13	160	27	80	0	110	405	430	0	550	800	765	1200	15	13000	3490	2270	1720
-	LETAC	ANEX	ANEX 15HCE - -	More info	-	150	No	No	0	0	10	0	1800	0	30	0	0	0	0	0	0	0	0	4500	0	0	0
-	SANGIACOMO	RCE	T350 RCE - -	More info	Col de Cygne	3500	Yes	No	0	20	250	20	50	0	0	0	800	0	880	1250	1000	1800	0	0	0	0	0
