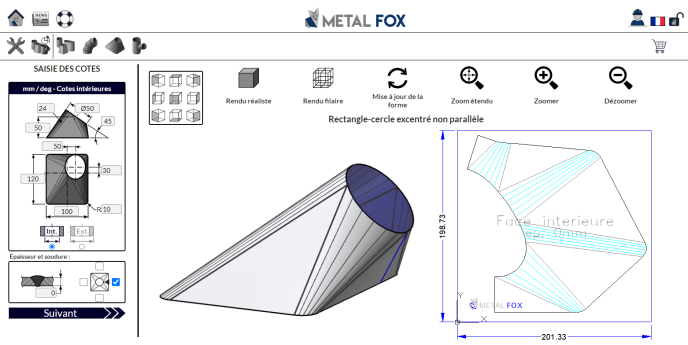

MetalFox.net is the first online sheet metal flattening software.

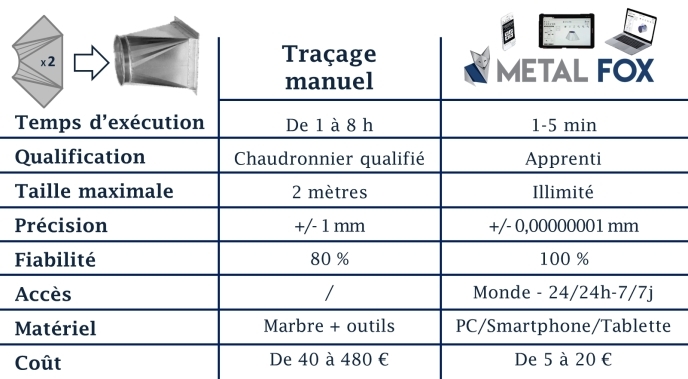

Accessible without installation from a web browser, MetalFox allows all professionals, even non-experts, to reliably and accurately flatten the most complex shapes in less than 5 minutes.
Adaptable to Smartphone, tablet and PC, MetalFox is used in workshops, construction sites and design offices worldwide.

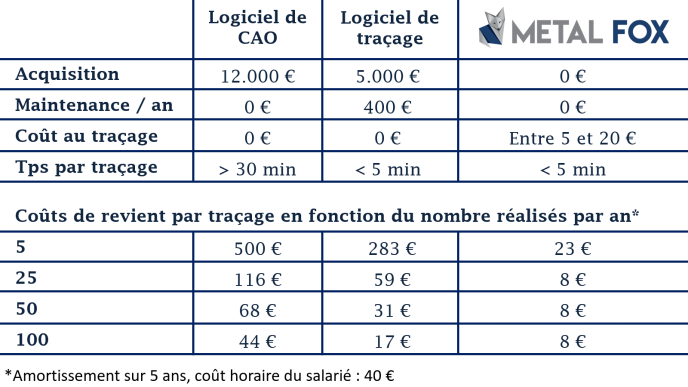

MetalFox is economical and offers purchase options adapted to the activity of companies: pay-per-use or subscriptions.
From 5€ per job.
- A vast choice of boiler making and piping shapes.
- Unprecedented technical options: taking into account welding clearances, bending radii, etc.
- Generation in less than 5 minutes of the dxf file for machine cutting; laser, water jet, etc.
- Accessible 24 hours a day, 7 days a week from the Internet, on an unlimited number of computers per company.
The creation of a MetalFox.net account allows you to create 10 shapes for free: straight cones, cylinders, ...

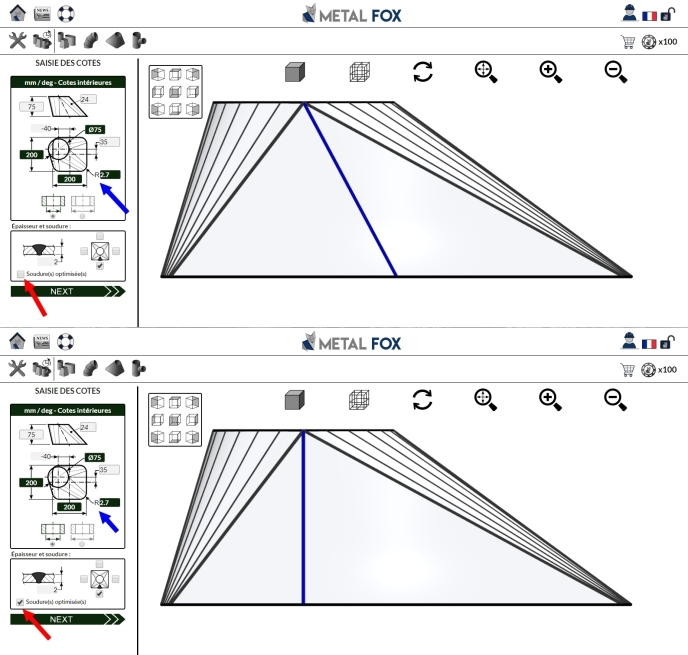

Welding optimization with MetalFox: save money and time!
Save time and money by reducing weld lengths and changing weld positions. This option is available on prisms, oblique pyramids and offseted transitions.
The aim is to save on welding costs by reducing weld lengths as much as possible, but not only …
Indeed, for some parts, such as offseted transitions, it is important to finish flat faces with a right angle.
This makes it easier the manufacturing and the assembly of the sub-parts.Why did you make this optimization optional?
Because in two cases, weld optimization could be counterproductive:
Firstly, if the part is offseted and one end of the weld is too close to the folds of the opposite section.
This will cause problems during shaping because the “triangles” of the flat parts will then be too thin. It will therefore be very difficult, and maybe impossible, to shape them properly and obtain a flat weld.Second, for aesthetic reasons.
For example for an oblique square form, placing the weld with at a right angle will create the impression of a wobbly piece.
In this case, it will then be more interesting to have a weld centered on the two opposite sections.
